DC Adjustable Drives

For information on ordering, go to the Contacts page.

Description:

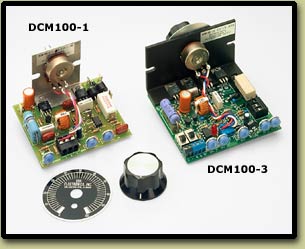

The DCM100 Series full wave DC Motor Controls are designed for excellent performance over its entire 50:1 speed range. The DCM100 can be front panel mounted using the main pot knob and dial plate. "U" slots in the mounting bracket can be used for back panel mounting with remote pot. Either method provides additional heat sink area. Control output is a linear function of potentiometer rotation. Models DCM100-1,2,3 can also be operated in a voltage following mode. Motor speed will follow an isolated 0 to 10VDC input signal. The DCM100-3SI output will follow a wide range of input voltage or current signals which can be specified when ordering (4-20ma is standard ). The input section of this model is opto-isolated to accept non-isolated and grounded inputs. All models feature Electronic Stop (S1, S2 Terminals) for repetitive ON/OFF switching of heavy armature currents with smooth acceleration each re-start. Every control is supplied with a correctly sized horsepower resistor, pre-wired main control pot and operating instructions. Enclosed models are available with line cord, switch and fuse in a heavy gage steel enclosure. Designed for Shunt Wound & PM DC Motors 115 VAC or 230 VAC Line. ARMATURE VOLTAGES:12,24,90,130,180 VDC

How to Order:

  • Contact EPIC
Features
  • DCM100-1 for 1/50 through 1/2 H.P.
  • DCM100-2 for 1/2 through 1 H.P.
  • MinÊ / Max Speed
  • Adjustable IR compensation
  • Soft Start
  • Electronic stop
  • Voltage following (0 to 10V isolated signal)
  • 120 or 240VAC, 50/60 Hz
  • Mounting bracket allows front or back panel mount.
  • Main control pot pre-wired to 3 position terminal block
  • Filtered output available

DCM100-3 for 1/50 through 3HP Same features as DCM100-1,2 PLUS:

  • Adjustable current limit and acceleration
  • 120/240VAC Switch Selectable, 50/60Hz
  • Terminal blocks for all connections

DCM100-3SI Signal Input Option Adds:

  • Motor Speed follows analog input (4-20mA standard)
  • Signal Input circuit is opto-isolated from AC line and ground
  • CAL. POT. Allows range adjustment in AUTO MODE
  • Auto/ Man. Selection (3 position terminal block for jumper or SPDT switch)
